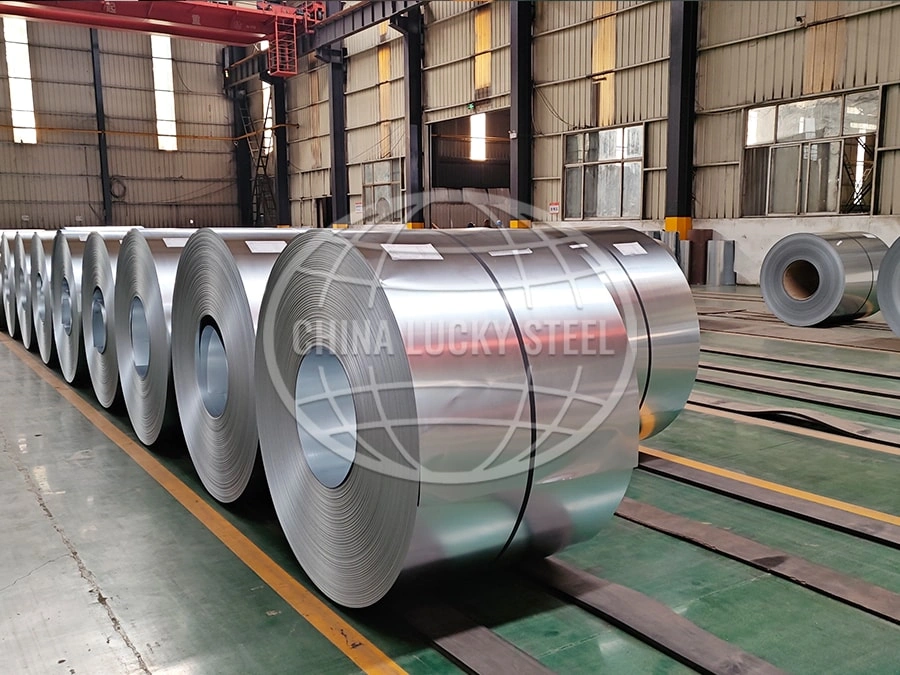

Az150 SGLCC Gl Aluzinc Coated Zincalume Metal Galvalume Steel Coil

  • Product Type:

    Az150 SGLCC Gl Aluzinc Coated Zincalume Metal Galvalume Steel Coil

  • Product Standard:

    AISI,ASTM,GB,JIS

  • Product Grade:

    SGCC, SGCH,DX51D, Q195,Q235, all according to the customer's request

  • Product Thickness:

    0.13-2mm

Specification

According to the different manufacturing processes and uses, steel coils can be divided into several types, such as cold-rolled steel coils, hot-rolled steel coils, hot-dip galvanized steel coils, cold-galvanized steel coils and color-coated steel coils.



1. Cold-rolled steel coil: The production process of cold-rolled steel coil is relatively simple and the cost is low. It is widely used in the fields of steel structure, machinery manufacturing and construction.



2. Hot-rolled steel coil: Hot-rolled steel coil can adjust the performance of steel by controlling the rolling temperature, which is suitable for the manufacture of automobiles, machinery manufacturing and construction.


3. Hot-dip galvanized steel coil: By plating zinc metal on the surface of the steel coil, the corrosion resistance and strength of the steel coil can be improved, which is commonly used in the fields of construction and electricity.



4. Cold-galvanized steel coil: Compared with hot-dip galvanized steel coil, cold-galvanized is more environmentally friendly, but has less corrosion resistance and strength. It is mostly used in household appliances, body parts and construction fields.



5. Color coated steel coil: Color coated steel coil is processed by spraying paint on the surface of the steel coil, which is commonly used in construction, electrical appliances, automobiles and other fields.



Parameters

StandardAISI,ASTM,GB,JISGradeSGCC, SGCH,DX51D, Q195,Q235, all according to the customer's request
Thickness0.13-2mmWidth600-1250mm
Regular Size750-762mm,900-914mm,1000mm,1200mm,1219-1250mm all available
Tolerance+/-0.02mmZinc coatingZ30-600g/㎡
Coil ID508/610mmCoil Weight3-8 tons
TechniqueHot rolled, cold rolledPackageSeaworthy package
CertificationISO 9001-2008,SGS,CE,BVMOQ25 tons (in one 20ft FCL)
Delivery15-20 daysMonth Capacity12000 tons
Surface TreatmentOiled(O),Chromium(C),Phosphating(P),Spinpass
SpangleRegular spangle,minimal spangle, zero spangle,big spangle
Standard PackingDustproof kraft sheet
Iron packing
Angle protective
packing belt


RemarksMin trial order 25 ton each thickness
HRBSoft Hard(<60)
Medium Hard(60-85)
Full Hard(85-95)


Mechanical properties of galvanized steel
UsageGradeYield strength(MPa)Tensile strength(MPa)
Punching galvnaized steelDC51D+Z-270-500
DC52D+Z140-300270-420
DC53D+Z140-260270-380
Structure galvanized steelS280GD+Z≥280≥360
S350GD+Z≥350≥420
S550GD+Z≥550≥560
